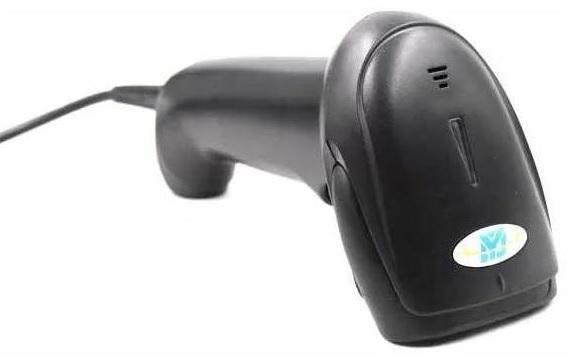

USB 2D Barcode Handheld Scanner

DY BARCODE SCANNER – DS6100C

High Light: Cmos Barcode Scanner, Barcode Scanner Gun

DS6100 10mm-500mm Depth Field 32-bit USB/RS232 Wired Barcode Scanner 2D Handheld Barcode Reader

Product Description

DS6100 is a High-Performance 2D Barcode Scanner with leading CMOS Image recognition Technology

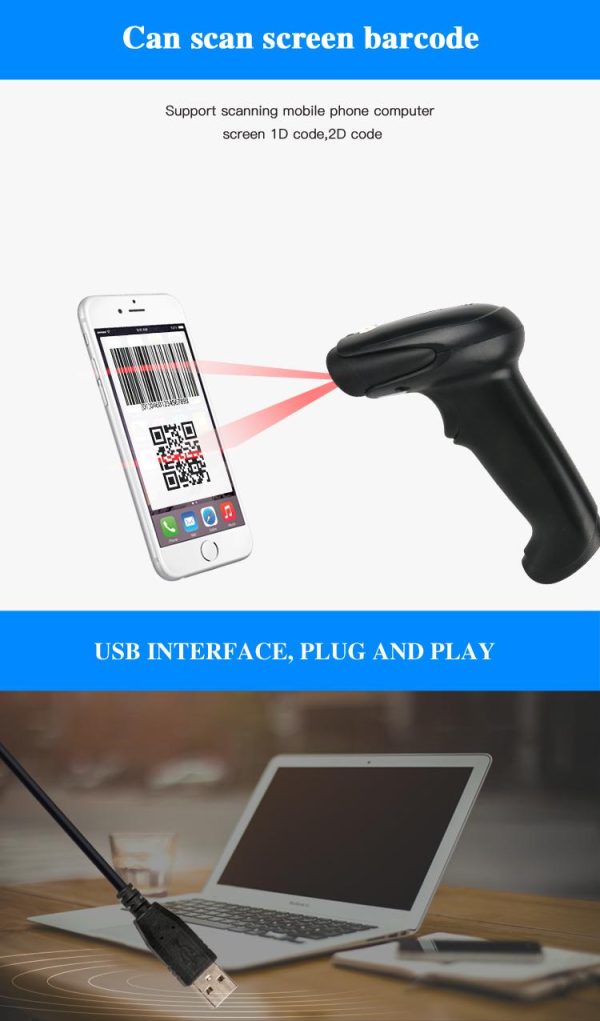

It can easily read the paper, goods, screen and other media Barcodes

Widely used in Manufacturing, Warehouse, Logistics, Health Care, Retail Chain

Mobile Payment, Express Delivery, Inventory Management, Food Traceability, Asset Inventory, etc

Features

Ergonomic design, comfortable using, cost-effective.

Read all mainstream 1D 2D barcodes in the market easily. (4mil)

Interface: USB.

Support multiple languages and systems

Support USB barcode information transmission. ( languages customization)

Widely used in supermarket, warehouse, mobile payment, chain stores.

Application

Supermarket

Warehouse

Mobile payment

Retail chain

Courier

Health care

Physical Parameter

Weight: 110g(without cable)

Dimension: L150mm x W70mm x H95mm

Interface Type: USB

Communication Way: USB (USB-KBW, USB-COM)

Power Supply: DC 5V@130mA(work)

Performance

Scan type: CMOS

Light source: Red light LED 625±10nm(aim),5600K LEDs(lighting)

CPU: 32-bit

Resolution: 640 x 480

Resolution: 4mil/0.1mm (PCS90%, Code 39)

Scan Tolerance: 10CM/S

Depth of Field: 10mm-500mm

Scan Mode: Manual, Continuous, Auto sense

Scan Angle: Roll 360, Pitch±60, Skew±60 (PCS90%, Code 39,10mil/0.25mm)

Print Contrast Signal: 25%

Ambient Light: Dark, indoor natural light

Symbologies: 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39

Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar(NW-7), MSI, etc

2D: QR Code, PDF417, Data Matrix, etc

Environmental

Operating Temperature: 10 to 50

Storage Temperature: 30 to 60

Humidity: 5% to 5% (non-condensing)

Drop Height: 1.5m

Transport Vibration Test: 10H @ 125RPM

Depth Of Field

4MIL: 30-60mm (PCS90%, Code 39)

13MIL: 40-210mm (PCS90%, EAN-13)

20MIL: 50-260mm (PCS90%, Code 39)

40MIL: 130-500mm (PCS90%, Code 39)

20MIL: 100-180mm (PCS90%, QR Code)

Accessories List

Data Cable: USB, Connect the Scanner to a Host Device
