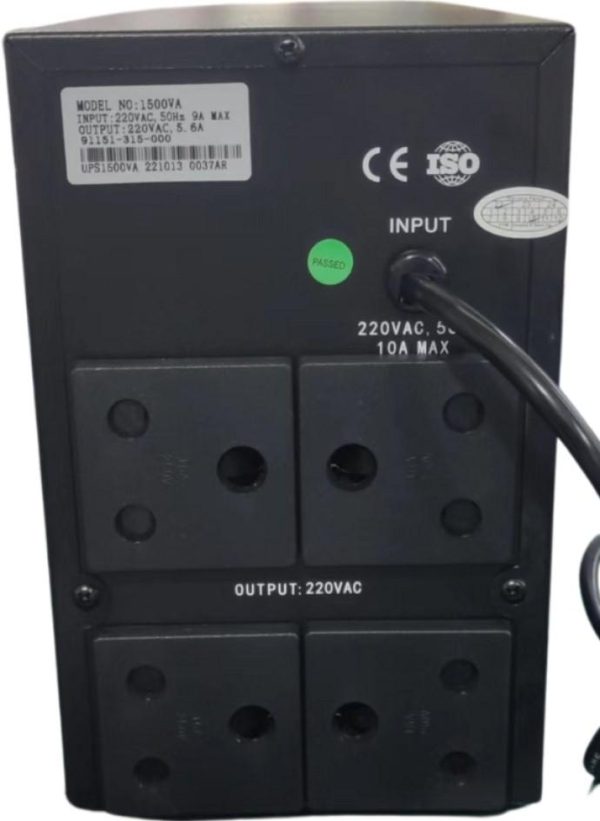

TBYTE 1500VA/900W Offline UPS

SPECIFICATIONS:

Input –

Voltage – 220Vac ± 25%, (5% Adjustable)

Frequency – 50Hz or 60Hz-± 6%

Output –

Frequency -50Hz or 60Hz±1%

Voltage – 220Vac ( ±-5% Adjustable)

Transfer time – <10msec (10 msec on system check)

Wave form – Sine wave under municipal supply, square wave under battery

operation

Protection –

Load input – Fuse for overload & short circuit protection

Short circuit – Fuse & current Limited & cut off

Battery –

Backup time – 15-35 mins depend on the load

Type – Sealed Lead-Acid battery

Protection – Auto-inspection, discharge protection and battery fault caution

Battery – Normally battery is charge once three months; it isn’t less than 6 hours

once a time.

Audible Alarm –

Battery supply power – Sufficient battery capacity, buzzer rings every 6 seconds red light flashs / Insufficient battery capacity, buzzer rings every 1 second, red light flashing

Battery low Voltage or Overload/short circuit – Buzzer keep rings, red light on Continuously

Physical – Weight (kg) – 11.7
