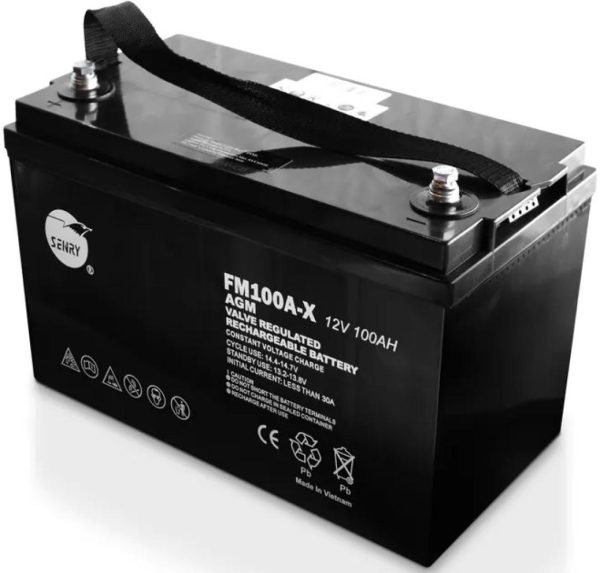

RCT Senry 6FM100A-X Fully-Seal LEAD ACID

RCT SENRY 6FM100A-X FULLY-SEAL LEAD ACID – FM100A-X

Description

AGM Technology for a maintenance-free, leak-proof battery that can be mounted in any orientation

General Features

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding

Not restricted for air transport complies with IATA/ICAO Special Provision A67

UL-recognized component

Can be mounted in any orientation

Computer-designed lead, calcium tin alloy grid for high power density

Long service life, float or cyclic applications

Maintenance-free operation

Low self-discharge

The rechargeable batteries are lead-lead dioxide systems

The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized

Should the battery be accidentally overcharged producing hydrogen and oxygen

Special one-way valves allow the gases to escape thus avoiding excessive pressure build-up

Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leakproof and usable in any position

SPECIFICATIONS:

Product Code : RCT BAT FM100A-X

Nominal Voltage : 12V

Number of cell : 6

Design Life : 10 years

Nominal Capacity 77°F(25°C)

10 hour rate (10.0A, 10.8V) : 100Ah

5 hour rate (17.5A, 10.5V) : 87.5Ah

1 hour rate (66.2A, 9.6V) : 66.2Ah

Internal Resistance

Fully Charged battery 77°F(25°C) : =5.7 mOhms

Self-Discharge

Self-Discharge : 3% of capacity declined per month at 20°C(average)

Operating Temperature Range

Discharge : -20~60°C

Charge : -10~60°C

Storage : -20~60°C

Max. Discharge Current 77°F(25°C) : 900A(5s)

Short Circuit Current : 2100A

Charge Methods: Constant Voltage Charge 77°F(25°C)

Cycle use : 2.40-2.45VPC

Maximum charging current : 30.0A

Temperature compensation: -30mV/°C

Standby use: 2.20-2.30VPC

Temperature compensation: -20mV/°C

What’s in the�box

1 x Battery
