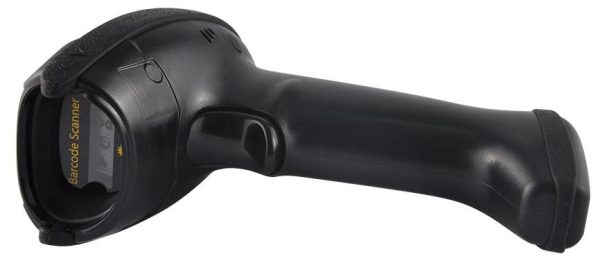

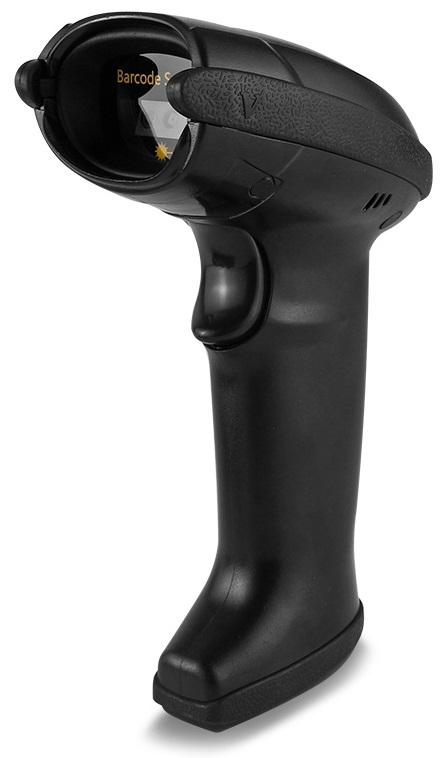

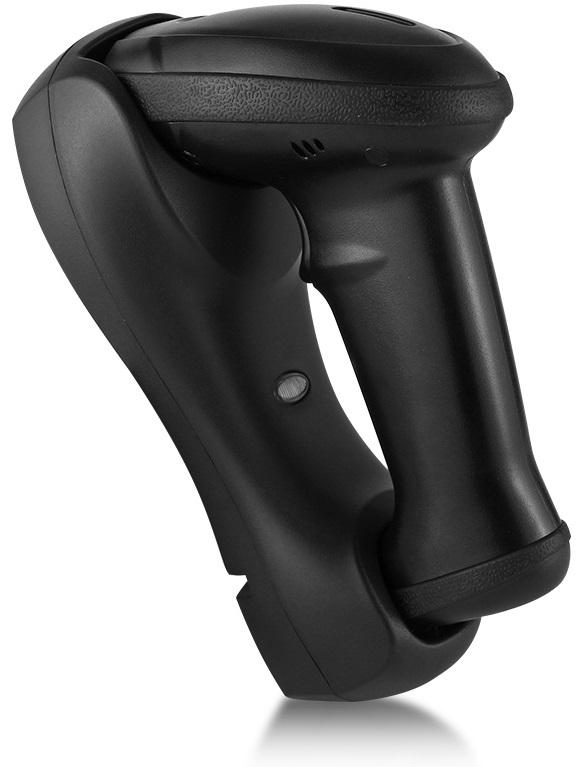

2D Wireless Barcode Scanner with Stand

DY BARCODE SCANNER – DS6202B

Product Description

DS6202 is a high-performance 2D barcode scanner with leading CMOS image recognition technology

It can easily read the paper, goods, screen and other media barcodes

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment

Express delivery, inventory management, food traceability, asset inventory, etc

Features

Ergonomic design, comfortable using

Read all the mainstream 1D & 2Dcodes in the market easily

High-performance processor, fast decoding (3mil)

Support interface: USB

Support multiple languages and systems

Interface: USB, Wireless 2.4G Bluetooth

Long tramission distance, intelligent automatic connection when its beyond range

Not manual setting

Widely used in  supermarket, warehouse, mobile payment, chain stores

Application

Supermarket               �

Warehouse

Mobile payment        �

 Retail chain

Courier                      �

Health care

Cable Interface DS6202B�scanner must be connected with terminals, PC host, POS and Android host etc.

Performance    �

Scan Type: CMOS

Light Source: Red light LED 625nm (aiming & Illumination )

CPU: 32-bit

Resolution: 4mil

Decoding speed: 35CM/S

Depth Of Field:  35mm-500mm

Scan Mode: Manual, Auto sense

Scan Angle: Roll360 ,Pitch±60 ,Skew±55 (PCS90%, Code 39,10mil / 0.25mm)

Print Contrast Signal: 20%

Ambient Light: Dark environment , indoor natural light

Wireless communication mode: Synchronization , storage

Wireless transmission distance: 2.4GHz 100m, Bluetooth 30m,(Open distance)

Storage 350Kb:(over 20,000 Product code)

Battery capacity: 2200mAh

Battery charging time: About 7 h

Continuous working time: 15 h

Symbologies: 1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39,Code 32

Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5

(Straight 2 of 5) Codabar (NW-7),  MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc �

2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, Maxicode etc�

Physical Parameter

Weight:�205g(scanner), 230g(base)(without cable)

Dimension:�L175mm x W72mm x H100mm

L200mm * W90mm * H51mm(Communication base)

Interface Type: USB

Communication: USB, Wireless 2.4G, Bluetooth

Power Supply: DC 5V@180mA(work)

Environmental �

Operating Temperature: 20 to 50

Storage Temperature: 20 to 60

Humidity: 5% to 95%(non-condensing)

Drop Height: 1.8m

Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp

 High Temp. 60

Low Temp. -20

Transport Vibration Test: 10H@125RPM

Accessories List               �

Cable: USB, connect the scanner to a host device and charging

Communication : Used to receive and transmit scanner data
